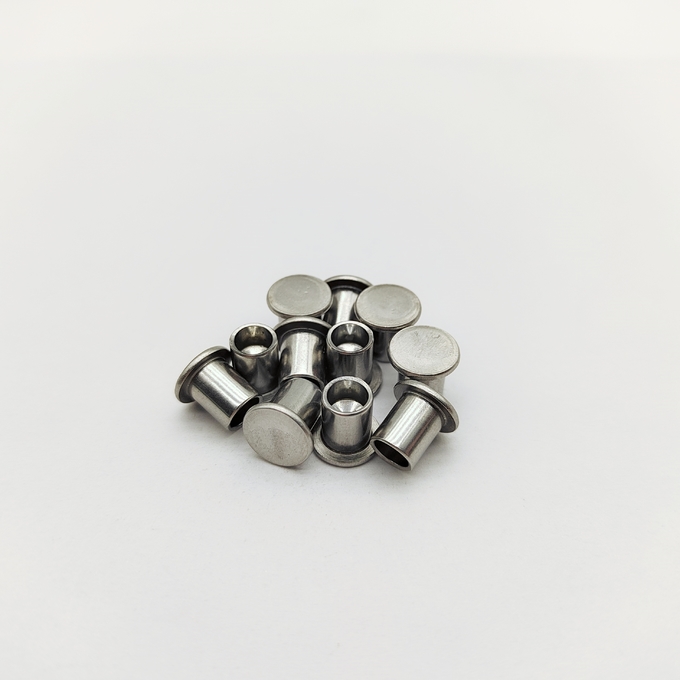

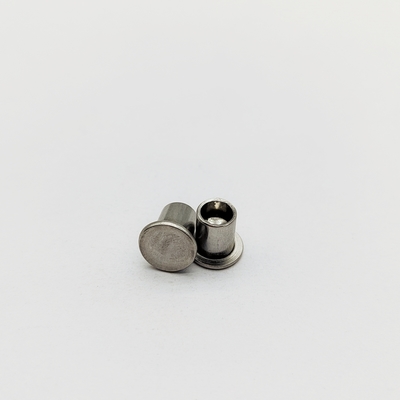

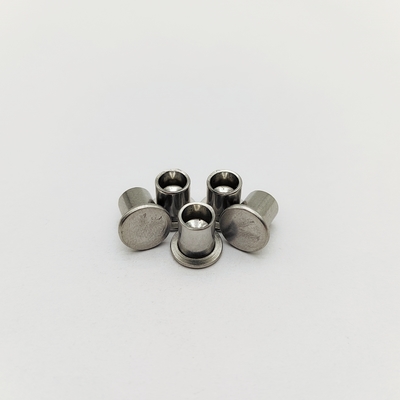

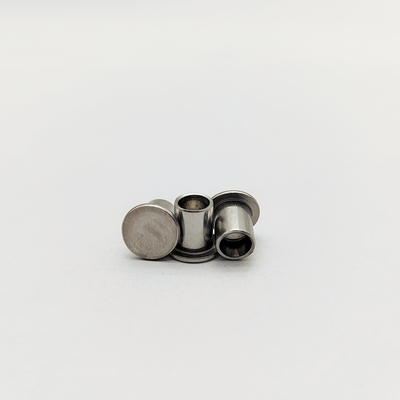

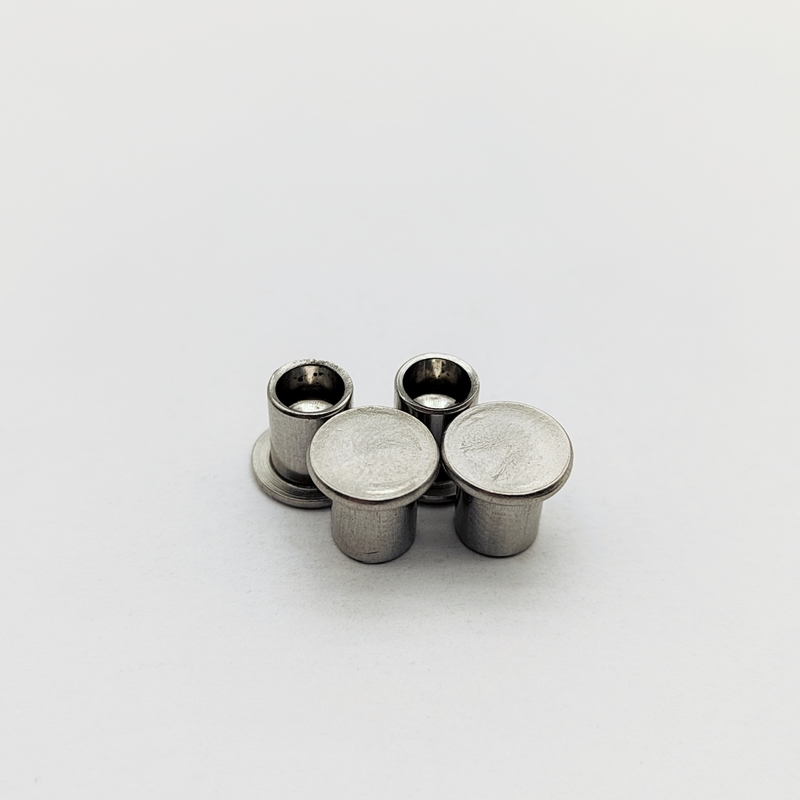

304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | guanbiao |
| گواهی: | ISO9001 |
| شماره مدل: | قابل تنظیم |
پرداخت:
| مقدار حداقل تعداد سفارش: | 50000 |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | کیسه پلاستیکی + کارتن + پالت |
| زمان تحویل: | 15-20 روز کاری |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | 5000000 |
|
اطلاعات تکمیلی |
|||
| قدرت برشی: | M4: 1850n (Din en ISO 898) | کاربرد محصول: | مونتاژ شاسی الکترونیک |
|---|---|---|---|
| سبک سر: | مسطح | نخ: | هیچ |
| زمان پیشرو: | 20 ~ 20 روز کاری | باله: | Passivation (خاکستری مات) |
| روش نصب: | پرچین | مادی: | فولاد ضد زنگ |
| تحمل کننده: | +/- 0.05 میلی متر | بعد: | ما می توانیم به بعد شما سفارشی کنیم |
| برجسته کردن: | 304 stainless steel DIN 7340 rivets,semi-tubular rivets flat head,M3-M8 stainless steel rivets,semi-tubular rivets flat head,M3-M8 stainless steel rivets |
||
توضیحات محصول
304 SS Semi-Tubular Rivets - Flat Head 120° - DIN 7340 - Cold Forged - M3 to M8 Sizes
Product Attributes
| Attribute | Value |
|---|---|
| Shear Strength | M4: 1,850N (DIN EN ISO 898) |
| Product Application | Electronics chassis assembly |
| Head Style | Flat |
| Thread | No |
| Lead Time | 15~20 working days |
| Finish | Passivation (Matte Grey) |
| Installation Method | Riveting |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Dimension | We Can Customize to your dimension |
Product Description
Corrosion-resistant A2 stainless semi-tubular rivets. Flat head 120°, hollow depth 1.25-1.75D. Sizes M3-M8. Passivated finish. For electronics, furniture & machinery. Custom lengths available.
Achieve flush, high-strength joints with cold-forged A2 stainless steel semi-tubular rivets. Featuring a precision 120° flat head and controlled hollow depth (1.5D), these DIN 7340-compliant rivets provide reliable fastening for sheet metal, plastics, and leather. The passivated finish resists corrosion in indoor industrial environments.
Technical Specifications
Head Type: Flat Head (120° Countersink Angle)
Head Diameter (D): M3: 6.0mm; M4: 8.0mm; M5: 9.5mm; M6: 11.0mm
Total Length (L): M3: 6-20mm; M5: 8-30mm; M8: 12-50mm
Hollow Depth (H): 1.5D (e.g., M4: 6.0mm)
Hole Diameter (d): 0.6D (e.g., M4: 2.4mm)
Material: A2-70 Stainless Steel (304)
Surface Treatment: Passivation (Matte Grey)
Shear Strength: M4: 1,850N (DIN EN ISO 898)
Customization: Non-standard L/H ratios, head angles
Primary Uses & Applications
- Electronics chassis assembly
- Furniture hinges and brackets
- Machinery guards
- Automotive interior trim
- Leather goods hardware
How to Use
- Drill hole = Rivet diameter +0.1mm (e.g., Ø4.1mm for M4)
- Insert rivet through materials
- Set with semi-tubular rivet tool:
- Position die supporting head
- Apply pressure to deform hollow end into 1.5D flange
- Optimal pressure: M4=3.5kN
