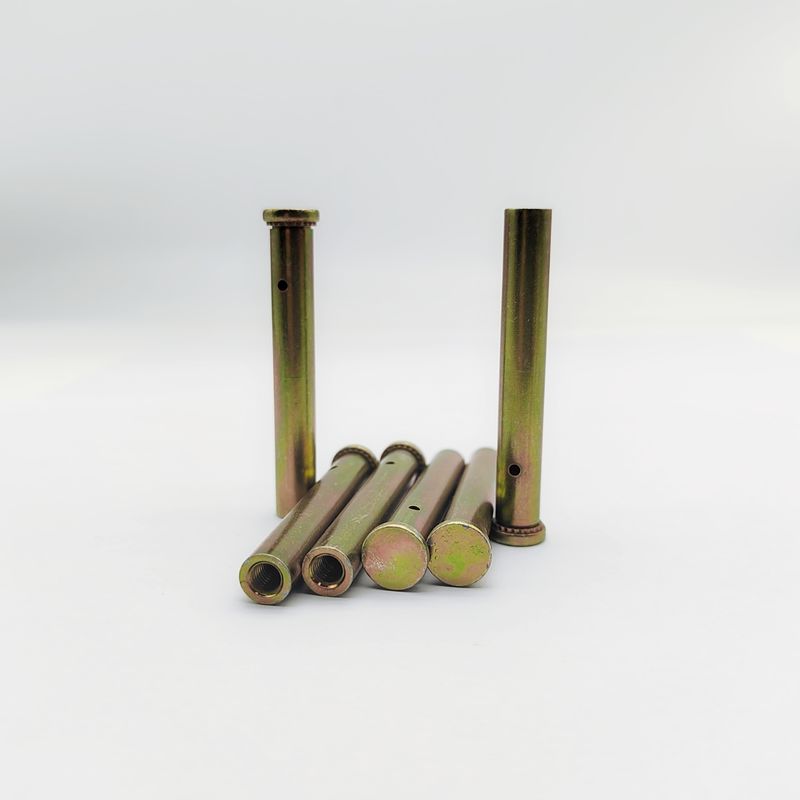

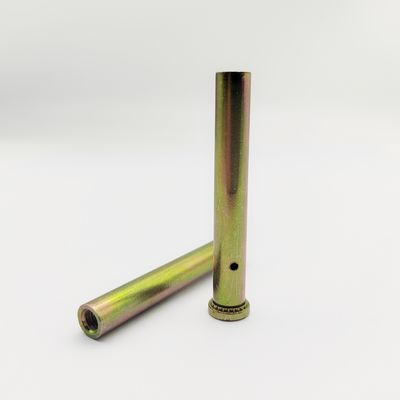

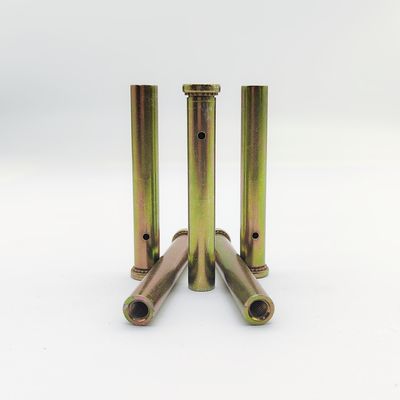

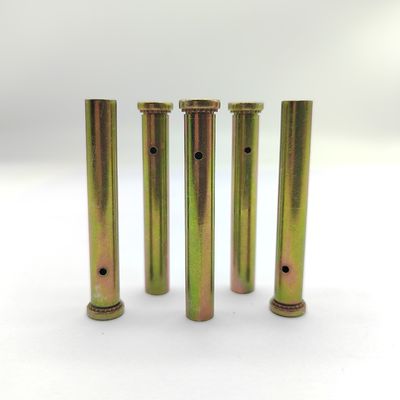

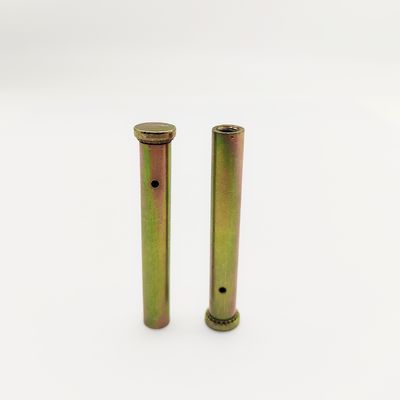

Stainless Steel Blind Hole Rivet Nut Column M6-M12 Yellow Zinc Plated
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | guanbiao |
| گواهی: | ISO9001 |
| شماره مدل: | قابل تنظیم |
| مدرک: | guanbiao hardware PPT(new)P...DF.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 50000 |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | کیسه پلاستیکی + کارتن + پالت |
| زمان تحویل: | 15-20 روز کاری |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | 5000000 |
|
اطلاعات تکمیلی |
|||
| کاربرد محصول: | تجهیزات سنگین | سبک سر: | مسطح |
|---|---|---|---|
| زمان پیشرو: | 20 ~ 20 روز کاری | باله: | آبکاری روی زرد ** (پایان صاف ، کرومات سه ارزش) |
| روش نصب: | پرچین | مادی: | فولاد ضد زنگ |
| تحمل کننده: | +/- 0.05 میلی متر | بعد: | ما می توانیم به بعد شما سفارشی کنیم |
| ضخامت تابلو: | 3.0 - 8.0 میلی متر | ||
| برجسته کردن: | stainless steel blind hole rivet nut,M6-M12 zinc plated rivet nut,yellow zinc plated steel rivet,M6-M12 zinc plated rivet nut,yellow zinc plated steel rivet |
||
توضیحات محصول
| Attribute | Value |
|---|---|
| Product Application | Heavy Equipment |
| Head Style | Flat |
| Lead Time | 15~20 working days |
| Finish | Yellow Zinc Plating (Smooth Finish, Tri-valent Chromate) |
| Installation Method | Riveting |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Dimension | We Can Customize to your dimension |
| Panel Thickness | 3.0 - 8.0 mm |
Long-length blind hole rivet nut columns for thicker materials. Stainless steel with yellow zinc plating, deep serrations. M6-M12 sizes. For heavy equipment, transportation, & energy. Custom specs.
Designed for demanding applications requiring penetration through thicker materials or higher strength, our Heavy-Duty Blind Hole Rivet Nut Columns feature a reinforced design. They incorporate deeper serrations under the 90° flat head for maximum anti-rotation performance in high-vibration environments.
| Head Type | 90° Flat Head with Reinforced Serrated Knurl |
| Head Diameter (D) | M6: 12.0mm; M8: 15.0mm; M10: 18.0mm; M12: 22.0mm |
| Shank Diameter | M6, M8, M10, M12 |
| Total Length (L) | M6: 20-40mm; M8: 25-50mm; M10: 30-60mm; M12: 40-80mm (Extended Range) |
| Blind Hole Depth | ≈65-70% of Total Length (L) |
| Thread Depth (T) | ≈55-60% of Total Length (L) (Non-Full Thread Design) |
| Material | A2-80 or A4-80 (316) Stainless Steel (Optional) |
| Surface Treatment | Yellow Zinc Plating (Smooth Finish, Tri-valent Chromate) |
| Installation Force | M8: 20-25 kN; M10: 30-38 kN |
| Torque-Out Resistance | M8: ≥20 Nm; M10: ≥30 Nm |
| Panel Thickness | 3.0 - 8.0 mm |
| Customization | Custom lengths, materials |
- Heavy Equipment: Constructing frames, access panels, and hydraulic component mounts on agricultural, mining, and construction machinery.
- Transportation: Securing seats, interior panels, and equipment in buses, railcars, and trailers using thicker gauge metals.
- Renewable Energy: Assembling inverter housings, solar panel mounting structures, and wind turbine internal components.
- Power Distribution: Mounting heavy electrical components and busbars within large power distribution enclosures and switchgear.
- Welded Structures: Adding adjustable leveling points or attachment points to welded frames and supports.
- Hole Preparation: The hole must be drilled to a tight tolerance. Deburr thoroughly to ensure the deep serrations can bite cleanly into the material. For thick panels, ensure hole perpendicularity.
- Tool Setup: These high-strength, long units require a high-force hydraulic pressing tool. Confirm the tool's capacity and stroke length exceed the required installation force and length.
- Installation: Position the nut column in the hole. The pressing ram must apply force evenly to the entire end surface of the column. Apply force steadily until a clear "bottoming" feel is achieved.
- Validation: For critical applications, conduct a torque-test on a sample installation to verify it meets the specified torque-out value.
- More than 20 years of screw production experience and non-standard screw custom development experience
- Precise production equipment with all imported equipment from Taiwan
- Complete management system with multiple strict monitoring for each batch
- Dedicated account management for seamless collaboration
Our team provides comprehensive support including product selection advice, installation guidance, and troubleshooting assistance. We offer detailed specifications, material safety data sheets, and maintenance tips to ensure optimal performance.
Products are securely packaged in moisture-resistant bags within sturdy boxes. Larger orders are palletized and shrink-wrapped. We use reliable courier services with tracking information provided for all shipments.
